Tip submitted by @atomfrede
If you want to generate static API documentation (and combine it with hand-written documentation), Swagger2Markup provides an easy way to combine auto-generated API documentation produced by Swagger with hand-written documentation into an up-to-date, easy-to-read, on- and offline user guide in HTML, PDF and EPUB.
Add the following to your project dependencies:
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-staticdocs</artifactId>
<version>${springfox.version}</version>
<scope>test</scope>
</dependency>
Add the following to the plugin section:
<plugin>
<groupId>org.asciidoctor</groupId>
<artifactId>asciidoctor-maven-plugin</artifactId>
<version>1.5.2</version>
<executions>
<execution>
<id>output-html</id>
<phase>test</phase>
<goals>
<goal>process-asciidoc</goal>
</goals>
<configuration>
<backend>html5</backend>
<outputDirectory>${project.build.directory}/docs/html</outputDirectory>
</configuration>
</execution>
<execution>
<id>output-pdf</id>
<phase>test</phase>
<goals>
<goal>process-asciidoc</goal>
</goals>
<configuration>
<backend>pdf</backend>
<outputDirectory>${project.build.directory}/docs/pdf</outputDirectory>
</configuration>
</execution>
</executions>
<dependencies>
<dependency>
<groupId>org.asciidoctor</groupId>
<artifactId>asciidoctorj-pdf</artifactId>
<version>1.5.0-alpha.8</version>
</dependency>
</dependencies>
<configuration>
<sourceDirectory>src/docs/asciidoc</sourceDirectory>
<sourceDocumentName>index.adoc</sourceDocumentName>
<attributes>
<doctype>book</doctype>
<toc>left</toc>
<toclevels>2</toclevels>
<generated>${project.build.directory}/docs/asciidoc/generated</generated>
</attributes>
</configuration>
</plugin>
In src/test/rest
create a new class called Swagger2MarkupTest
:
@RunWith(SpringJUnit4ClassRunner.class)
@SpringApplicationConfiguration(classes = Application.class)
@WebAppConfiguration
@IntegrationTest
public class Swagger2MarkupTest {
private static final String API_URI = "/v2/api-docs";
@Inject
private WebApplicationContext context;
private MockMvc mockMvc;
private File projectDir;
@Before
public void setup() throws IOException {
this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();
ClassPathResource pathfileRes = new ClassPathResource("config/application.yml");
projectDir = pathfileRes.getFile().getParentFile().getParentFile().getParentFile().getParentFile();
}
@Test
public void convertSwaggerToAsciiDoc() throws Exception {
Swagger2MarkupResultHandler.Builder builder = Swagger2MarkupResultHandler
.outputDirectory(outputDirForFormat("asciidoc"));
mockMvc.perform(get(API_URI).accept(APPLICATION_JSON))
.andDo(builder.build())
.andExpect(status().isOk());
}
private String outputDirForFormat(String format) throws IOException {
return new File(projectDir, "target/docs/" + format + "/generated").getAbsolutePath();
}
}
Add the following dependency to your project dependencies:
testCompile group: 'io.springfox', name:'springfox-staticdocs', version: springfox_version
Add the following to your build script dependencies:
classpath 'org.asciidoctor:asciidoctor-gradle-plugin:1.5.2'
classpath 'org.asciidoctor:asciidoctorj-pdf:1.5.0-alpha.8'
Apply the asciidoctor convert
plugin:
apply plugin: 'org.asciidoctor.convert'
Add the following to generate HTML and PDF:
ext {
generatedAsciidoc = file("${buildDir}/docs/asciidoc/generated")
}
asciidoctor {
dependsOn test
sources {
include 'index.adoc'
}
backends = ['html5', 'pdf']
attributes = [
doctype: 'book',
toc: 'left',
toclevels: '2',
numbered: '',
sectlinks: '',
sectanchors: '',
hardbreaks: '',
generated: generatedAsciidoc
]
}
In src/test/rest
create a new class called Swagger2MarkupTest
:
@RunWith(SpringJUnit4ClassRunner.class)
@SpringApplicationConfiguration(classes = Application.class)
@WebAppConfiguration
@IntegrationTest
public class Swagger2MarkupTest {
private static final String API_URI = "/v2/api-docs";
@Inject
private WebApplicationContext context;
private MockMvc mockMvc;
private File projectDir;
@Before
public void setup() throws IOException {
this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();
ClassPathResource pathfileRes = new ClassPathResource("config/application.yml");
projectDir = pathfileRes.getFile().getParentFile().getParentFile().getParentFile().getParentFile();
}
@Test
public void convertSwaggerToAsciiDoc() throws Exception {
Swagger2MarkupResultHandler.Builder builder = Swagger2MarkupResultHandler
.outputDirectory(outputDirForFormat("asciidoc"));
mockMvc.perform(get(API_URI).accept(APPLICATION_JSON))
.andDo(builder.build())
.andExpect(status().isOk());
}
private String outputDirForFormat(String format) throws IOException {
return new File(projectDir, "docs/" + format + "/generated").getAbsolutePath();
}
}
Create index.adoc
in src/docs/asciidoc
with following content:
include::{generated}/overview.adoc[]
include::{generated}/paths.adoc[]
include::{generated}/definitions.adoc[]

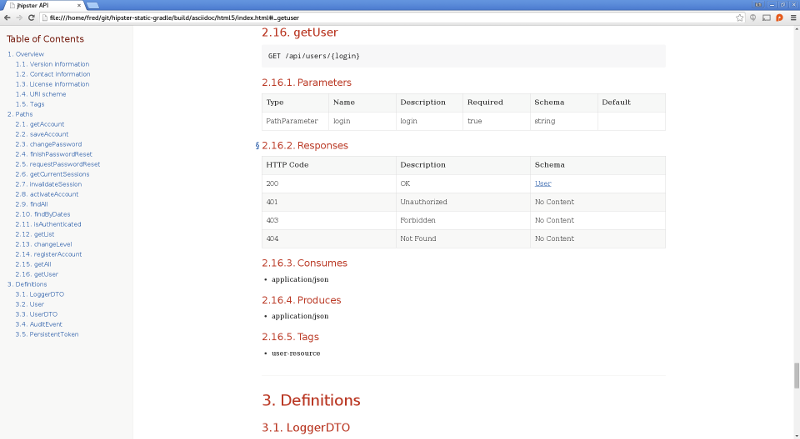

Your static documentation is generated during the test phase of your project. You find it in src/target/docs/html
or build/asciidoc/html5
.
For more information (e.g. how to add hand-written documentation) see the official reference documentation.
