Static API documentation with Swagger2Markup

Tip submitted by @atomfrede

If you want to generate static API documentation (and combine it with hand-written documentation), Swagger2Markup provides an easy way to combine auto-generated API documentation produced by Swagger with hand-written documentation into an up-to-date, easy-to-read, on- and offline user guide in HTML, PDF and EPUB.

Add required dependencies, plugins and test class

Maven

Add the following to your project dependencies:

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-staticdocs</artifactId>
    <version>${springfox.version}</version>
    <scope>test</scope>
</dependency>

Add the following to the plugin section:

<plugin>
  <groupId>org.asciidoctor</groupId>
  <artifactId>asciidoctor-maven-plugin</artifactId>
  <version>1.5.2</version>
  <executions>
    <execution>
      <id>output-html</id>
      <phase>test</phase>
      <goals>
        <goal>process-asciidoc</goal>
      </goals>
      <configuration>
        <backend>html5</backend>
        <outputDirectory>${project.build.directory}/docs/html</outputDirectory>
      </configuration>
    </execution>
    <execution>
      <id>output-pdf</id>
      <phase>test</phase>
      <goals>
        <goal>process-asciidoc</goal>
      </goals>
      <configuration>
        <backend>pdf</backend>
        <outputDirectory>${project.build.directory}/docs/pdf</outputDirectory>
      </configuration>
    </execution>
  </executions>
  <dependencies>
    <dependency>
      <groupId>org.asciidoctor</groupId>
      <artifactId>asciidoctorj-pdf</artifactId>
      <version>1.5.0-alpha.8</version>
    </dependency>
  </dependencies>
  <configuration>
    <sourceDirectory>src/docs/asciidoc</sourceDirectory>
    <sourceDocumentName>index.adoc</sourceDocumentName>
    <attributes>
      <doctype>book</doctype>
      <toc>left</toc>
      <toclevels>2</toclevels>
      <generated>${project.build.directory}/docs/asciidoc/generated</generated>
    </attributes>
  </configuration>
</plugin>

In src/test/rest create a new class called Swagger2MarkupTest:

@RunWith(SpringJUnit4ClassRunner.class)
@SpringApplicationConfiguration(classes = Application.class)
@WebAppConfiguration
@IntegrationTest
public class Swagger2MarkupTest {

    private static final String API_URI = "/v2/api-docs";

    @Inject
    private WebApplicationContext context;

    private MockMvc mockMvc;

    private File projectDir;

    @Before
    public void setup() throws IOException {
        this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();

        ClassPathResource pathfileRes = new ClassPathResource("config/application.yml");
        projectDir = pathfileRes.getFile().getParentFile().getParentFile().getParentFile().getParentFile();
    }

    @Test
    public void convertSwaggerToAsciiDoc() throws Exception {
        Swagger2MarkupResultHandler.Builder builder = Swagger2MarkupResultHandler
            .outputDirectory(outputDirForFormat("asciidoc"));
        mockMvc.perform(get(API_URI).accept(APPLICATION_JSON))
            .andDo(builder.build())
            .andExpect(status().isOk());

    }

    private String outputDirForFormat(String format) throws IOException {
        return new File(projectDir, "target/docs/" + format + "/generated").getAbsolutePath();
    }
}

Gradle

Add the following dependency to your project dependencies:

testCompile group: 'io.springfox', name:'springfox-staticdocs', version: springfox_version

Add the following to your build script dependencies:

classpath 'org.asciidoctor:asciidoctor-gradle-plugin:1.5.2'
classpath 'org.asciidoctor:asciidoctorj-pdf:1.5.0-alpha.8'

Apply the asciidoctor convert plugin:

apply plugin: 'org.asciidoctor.convert'

Add the following to generate HTML and PDF:

ext {
    generatedAsciidoc = file("${buildDir}/docs/asciidoc/generated")
}

asciidoctor {
    dependsOn test
    sources {
        include 'index.adoc'
    }
    backends = ['html5', 'pdf']
    attributes = [
        doctype: 'book',
        toc: 'left',
        toclevels: '2',
        numbered: '',
        sectlinks: '',
        sectanchors: '',
        hardbreaks: '',
        generated: generatedAsciidoc
    ]
}

In src/test/rest create a new class called Swagger2MarkupTest:

@RunWith(SpringJUnit4ClassRunner.class)
@SpringApplicationConfiguration(classes = Application.class)
@WebAppConfiguration
@IntegrationTest
public class Swagger2MarkupTest {

    private static final String API_URI = "/v2/api-docs";

    @Inject
    private WebApplicationContext context;

    private MockMvc mockMvc;

    private File projectDir;

    @Before
    public void setup() throws IOException {
        this.mockMvc = MockMvcBuilders.webAppContextSetup(this.context).build();

        ClassPathResource pathfileRes = new ClassPathResource("config/application.yml");
        projectDir = pathfileRes.getFile().getParentFile().getParentFile().getParentFile().getParentFile();
    }

    @Test
    public void convertSwaggerToAsciiDoc() throws Exception {
        Swagger2MarkupResultHandler.Builder builder = Swagger2MarkupResultHandler
            .outputDirectory(outputDirForFormat("asciidoc"));
        mockMvc.perform(get(API_URI).accept(APPLICATION_JSON))
            .andDo(builder.build())
            .andExpect(status().isOk());

    }

    private String outputDirForFormat(String format) throws IOException {
        return new File(projectDir, "docs/" + format + "/generated").getAbsolutePath();
    }
}

Create index.adoc file

Create index.adoc in src/docs/asciidoc with following content:

include::{generated}/overview.adoc[]
include::{generated}/paths.adoc[]
include::{generated}/definitions.adoc[]

Generate static documentation

Your static documentation is generated during the test phase of your project. You find it in src/target/docs/html or build/asciidoc/html5.

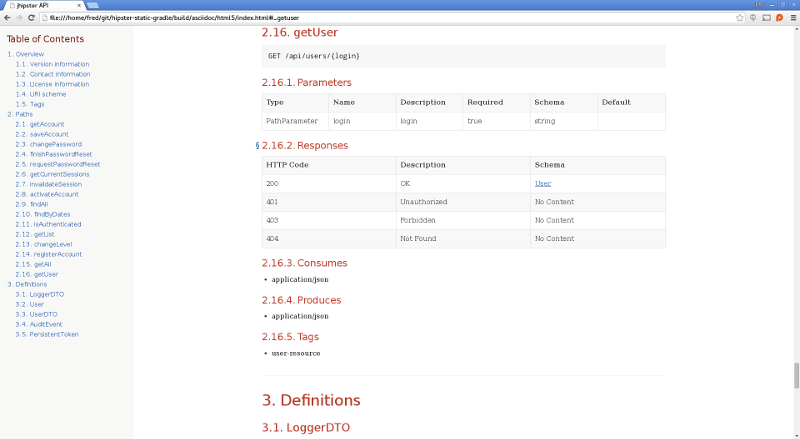

Example documentation
